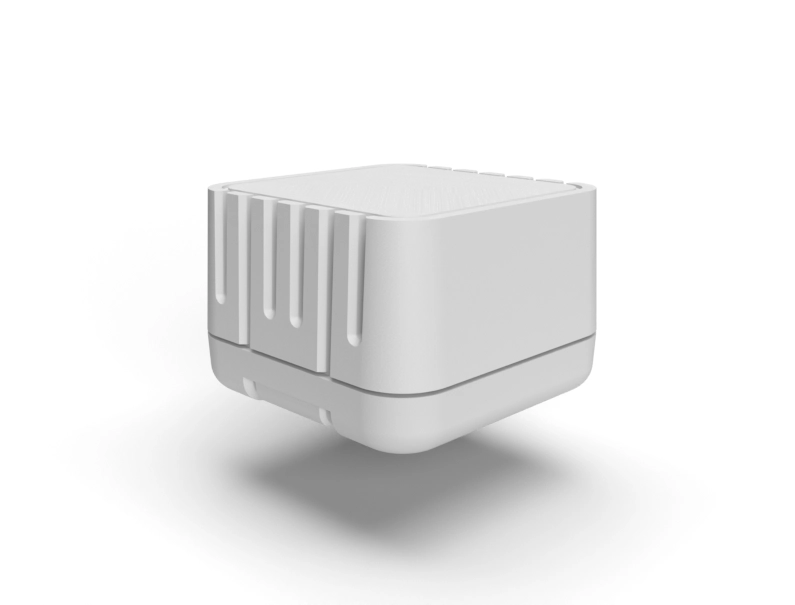

Small Vented Cube plastic enclosure
$3.33
each (min. 250pc).

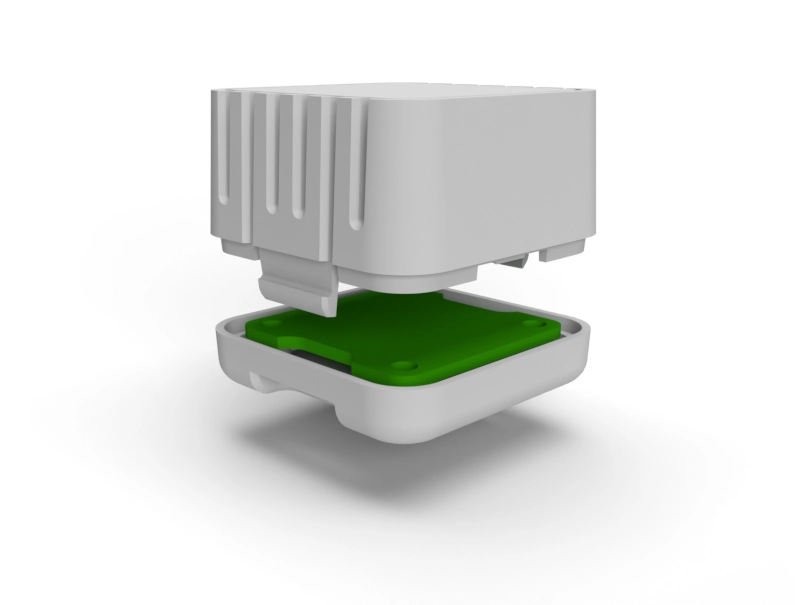

Our plastic enclosures are expertly crafted in a versatile palette of either classic white or sophisticated black, using premium quality UL94 HB, RoHS-compliant ABS Plastic. Uniquely designed to accommodate PCBs with a solid thickness of .062" and with perfect dimensions of 1.20" x 1.20", this enclosure is all about precision and elegance.
- Height: 1.00 "
- Width: 1.50 "
- Length: 1.50 "
- Material: ABS
- Assembly: Press-Fit
- PCB Size: 1.201" x 1.201"
- PCB Thickness: 0.0620
- GTIN No.: 810014171869
Need less than 250 pieces?
See our distributors to
purchase smaller quantities.
Need help figuring out
which enclosure you need?
Download our buyer's guide!
$1,000 minimum order. Quotes are subject to a $1,000 minimum. Call 805-595-0448 if you have any questions.
