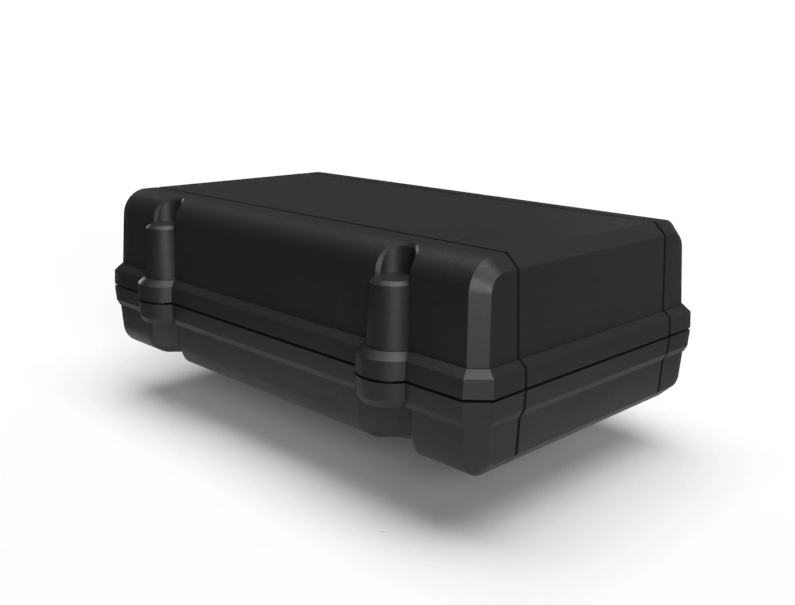

Industrial Utility plastic enclosure

$11.01 each (min. 250pc).

Download the 2D Drawing

The standard material for this enclosure is a high strength, impact resistant, RoHS compliant ASA Plastic. Our O-Rings are molded out of a FDA Approved Silicone Rubber which enables the enclosure to meet an IPX7 rating. The enclosure will support a .062" thick PCB measuring 4.10" x 2.30".

Need a Market-Ready version of this versatile off the shelf enclosure? Customization options from New Age Enclosures are only a quote away.

Applications Include: Ideal for any application that requires protection of sensitive electronic components. As a true outdoor enclosure, this diverse case may be used with a variety of different connectors including: interface connectors, cable connectors, parallel interface connectors, BONSI connectors, Lemo connectors, power supply connectors, and much more.

This enclosure is stocked in Black and Gray ASA composite, a superior resin for outdoor environments. Due to the UV inhibitor in this resin slight swirling and blushing occurs. Please remember to select the configurations you wish below. Customer is responsible for shipping and restocking costs due to incorrect order configurations. Assembly screws included. Screws required to secure PCB into place are not included. The enclosure may also be ordered in clear Acrylic. For custom inquiries and large quantities please contact a New Age representative.

Height: 1.40 "
Width: 2.70 "
Length: 4.50 "
Material: ABS
