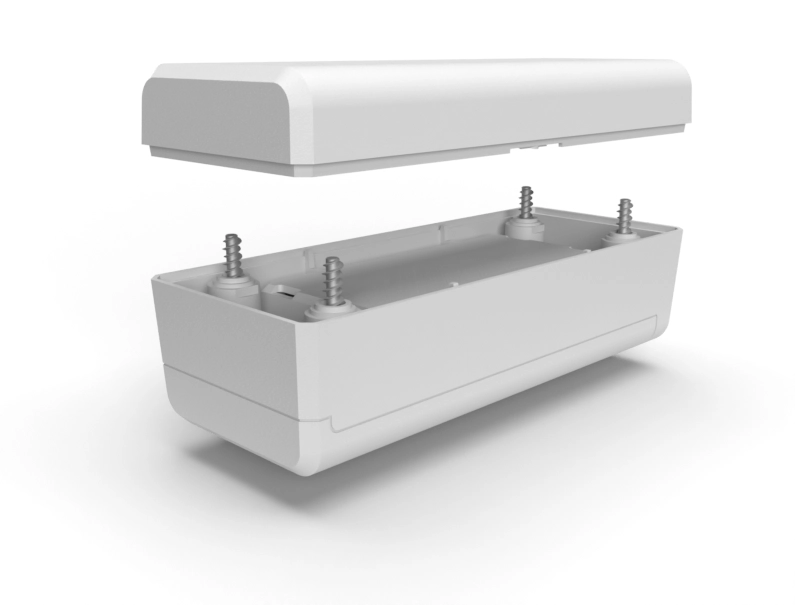

Compact AA plastic enclosure
The standard material for this enclosure is White or Black UL94 HB, RoHS compliant ABS Plastic. It will support a .062" or .039" thick PCB measuring 3.42" x 1.26".
Need a Market-Ready version of this versatile off the shelf enclosure? Customization options from New Age Enclosures are only a quote away.
Applications Include: Any and all handheld applications, self-powered electronic devices, low-profile wall-mount sensors and relay nodes, for medical, industrial, utility, and general home use programs.
The Compact AA battery enclosure is available in Black and White. Remember to select the correct configuration, color, and accessories below. The customer is responsible for shipping and restocking costs due to incorrect order configurations. Assembly screws included. Battery contacts are sold separately. If ordering battery contacts please be sure to select the style you want.- Height: 1.31 "
- Width: 1.44 "
- Length: 3.60 "
- Material: ABS
- Assembly: Screw Together
- PCB Size: 3.420" x 1.260"
- PCB Thickness: 0.0620
- GTIN No.: 810014171388
$1,000 minimum order. Quotes are subject to a $1,000 minimum. Call 805-595-0448 if you have any questions.
