S3A-382410B -

Enclosures, Boxes & Cases

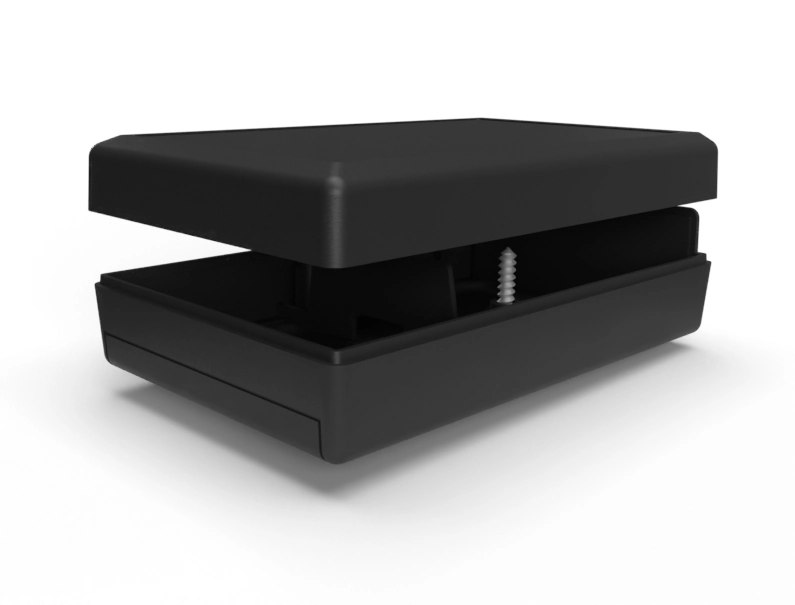

S3A-382410B plastic enclosure 1

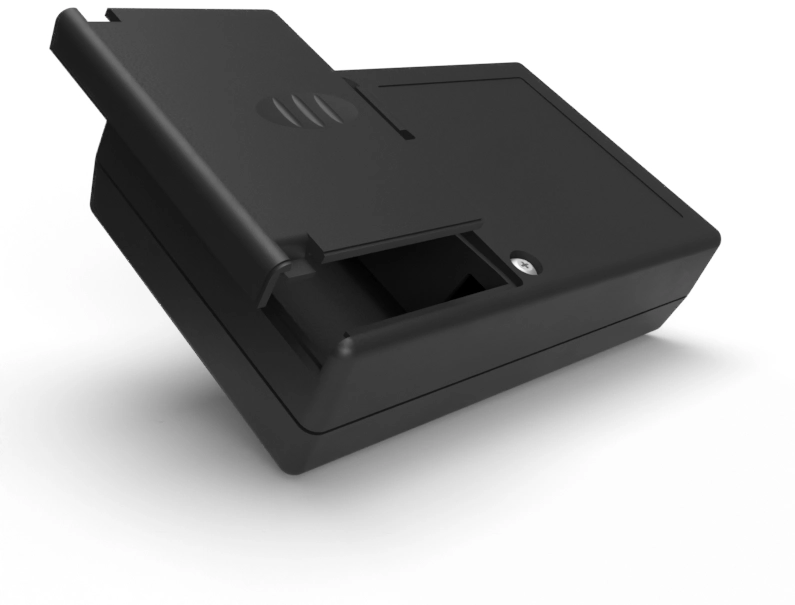

S3A-382410B plastic enclosure 2

S3A-382410B plastic enclosure 3

9 Volt Handheld plastic enclosure

$5.75 each (min. 250pc).

Download the 2D Drawing

The standard material for this enclosure is Black UL94 HB, RoHS compliant ABS Plastic. The battery configuration will support a .062" thick PCB measuring 2.15" x 2.15".

Need a Market-Ready version of this versatile off the shelf enclosure? Customization options from New Age Enclosures are only a quote away.

Applications Include: Any and all handheld applications, self-powered electronic devices, low-profile wall-mount sensors and relay nodes, for medical, industrial, utility, and general home use programs.

Height: 1.00 "
Width: 2.40 "
Length: 3.80 "
Material: ABS

Assembly: Screw Together
PCB Size: 2.150" x 2.150"
PCB Thickness: 0.0620
GTIN No.: 810014171425

Need less than 250 pieces? See our distributors to purchase smaller quantities.

Need help figuring out which enclosure you need? Download our buyer's guide!

Quantity Pricing
250 - $5.75 ea 500 - $5.59 ea 1,000 - $5.45 ea 2,500 - $5.31 ea 5,000 - $5.24 ea 10,000 - $5.18 ea

$1,000 minimum order. Quotes are subject to a $1,000 minimum. Call 805-595-0448 if you have any questions.

Select a quantity

-or-

Customize this enclosure
Find similar sized enclosures

Average Rating: 0.0 / 5 (0 ratings)

Log in to add your rating.

Check out more from the Battery Handheld category:
