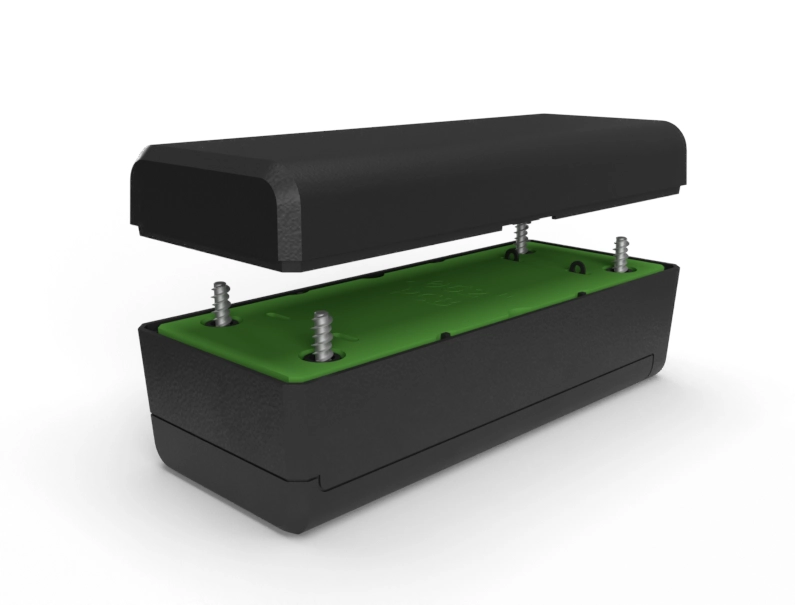

Compact AA plastic enclosure
$5.00
each (min. 250pc).
The standard material for this enclosure is White or Black UL94 HB, RoHS compliant ABS Plastic. It will support a .062" or .039" thick PCB measuring 3.42" x 1.26".
Need a Market-Ready version of this versatile off the shelf enclosure? Customization options from New Age Enclosures are only a quote away.
Applications Include: Any and all handheld applications, self-powered electronic devices, low-profile wall-mount sensors and relay nodes, for medical, industrial, utility, and general home use programs.
The Compact AA battery enclosure is available in Black and White. Remember to select the correct configuration, color, and accessories below. The customer is responsible for shipping and restocking costs due to incorrect order configurations. Assembly screws included. Battery contacts are sold separately. If ordering battery contacts please be sure to select the style you want.- Height: 1.31 "
- Width: 1.44 "
- Length: 3.60 "
- Material: ABS
- Assembly: Screw Together
- PCB Size: 3.420" x 1.260"
- PCB Thickness: 0.0620
- GTIN No.: 810014171371
Need less than 250 pieces?
See our distributors to
purchase smaller quantities.
Need help figuring out
which enclosure you need?
Download our buyer's guide!
