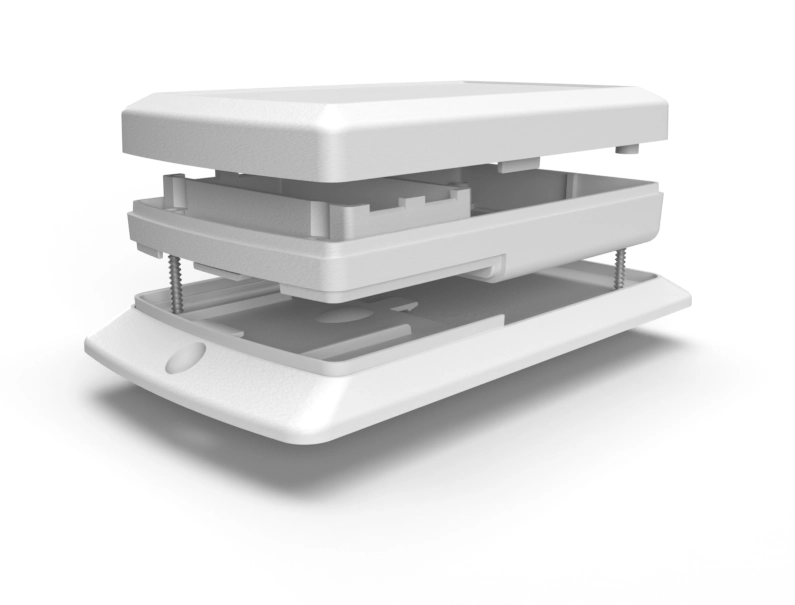

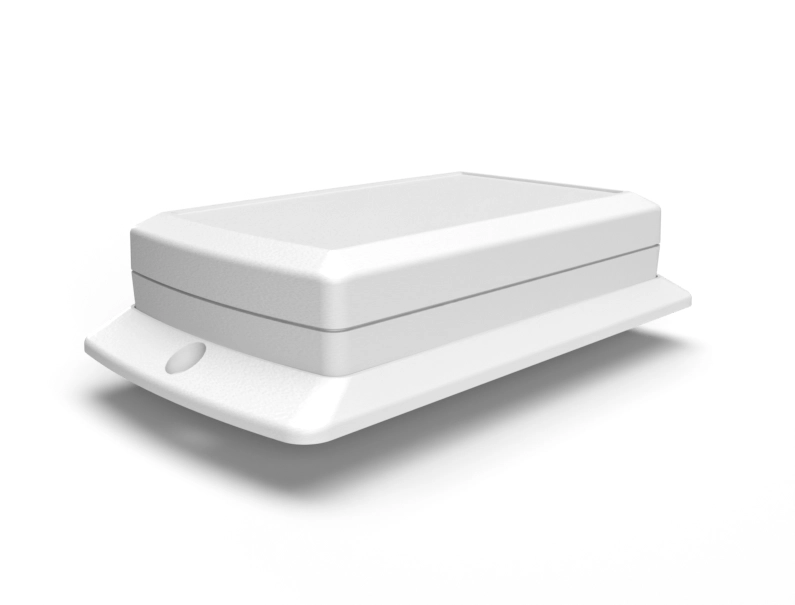

Medium Handheld Kit plastic enclosure
$8.65
each (min. 250pc).
The standard material for this enclosure is White or Black UL94 HB, RoHS compliant ABS Plastic. It will support a .062" thick PCB measuring 2.30" x 2.20".
Need a Market-Ready version of this versatile off the shelf enclosure? Customization options from New Age Enclosures are only a quote away.
Applications Include: wireless wall mount devices, AA, AAA and 9-volt battery compartment boxes, installations where direct power is not an option, great for use with touch screens and key pads.
The Medium Handheld is stocked in Black and White ABS. Remember to select the configurations you wish below. Customer is responsible for shipping and restocking costs due to incorrect order configurations. Assembly screws are included, screws to secure PCB are not included.- Height: 1.00 "
- Width: 2.70 "
- Length: 4.40 "
- Material: ABS
- Assembly: Screw Together
- PCB Size: 2.500" x 2.300"
- PCB Thickness: 0.0620
- GTIN No.: 810014171609
Need less than 250 pieces?
See our distributors to
purchase smaller quantities.
Need help figuring out
which enclosure you need?
Download our buyer's guide!
